ECO-WORTHY LiFePO4 12V/24V/48V Lithium Iron Phosphate Battery has twice the power, half the weight, and lasts 8 times longer than a sealed lead acid battery, no maintenance, extremely safe and very low toxicity for environment. Our line of LiFePO4 offer a solution to demanding applications that require a lighter weight, longer life and ligher capacity battery.
Certificate :
CE,UL,ISO9000,ISO14000Lead Time :
20DaysPayment Accept :
T/T, PayPal, Western UnionWarranty :
5YearsMOQ :
50Cycle times :
3000+BMS Protection :
Overcharge/Over-discharge/Over-temperature| Features |

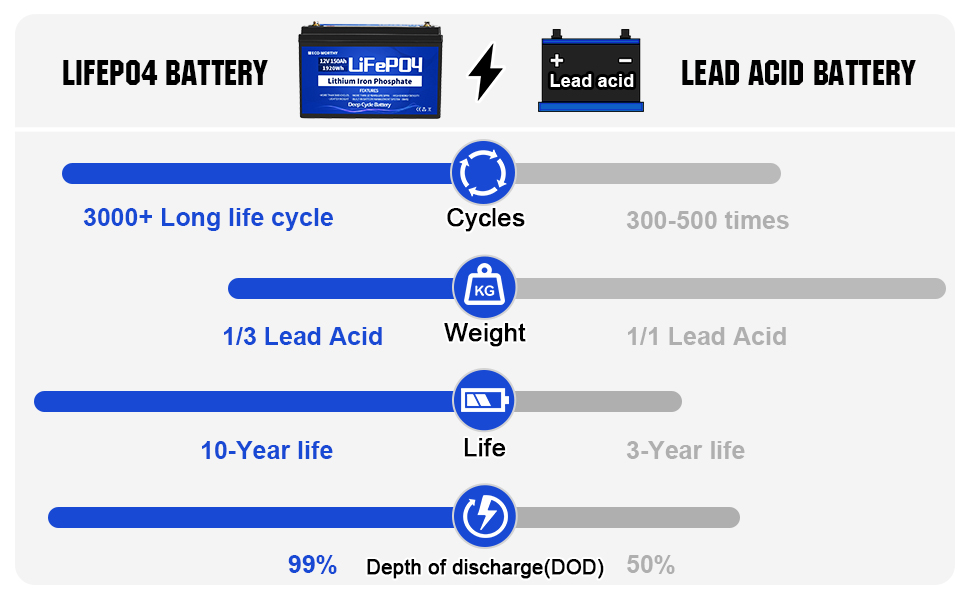

10-year life & 3000+ cycle
Eco-Worthy's 100ah LiFePO4 battery contains 3000+ cycle times, each lithium battery can run for more than 10 years, which is equivalent to 3 lead-acid batteries.
High Charging Speed
Eco-Worthy's 100ah LiFePO4 battery can reach 80% of power after one-hour charge, Under the same condition, the lead acid battery can only reach 20%. In the case of limited charging time, choosing a lithium battery can get enough energy faster.
Lightweight & Easy Installation
Eco-Worthy's 100ah LiFePO4 battery is lighter than Lead-Acid battery with the same capacity. Our 100ah LiFePO4 battery weight is 22.93 lbs, only 1/3 of Lead-Acid battery. More convenient carrying, any mount directions, no leakage risk, safer usage.
Capacity Expansion
Eco-Worthy's 100ah LiFePO4 battery can be connected in parallel and in series for larger capacity and voltage. Up to 4 identical batteries can be mounted as a series string as a 48V battery bank, and you can connect multiple batteries in parallel, while we suggest no more than 4pcs.
Multiple applications
Eco-Worthy's 100ah LiFePO4 lithium battery is perfect for UPS backup, lighting, TV, e-Robot, loud speaker, coffeemaker, air conditioner, fridge, heater, etc.

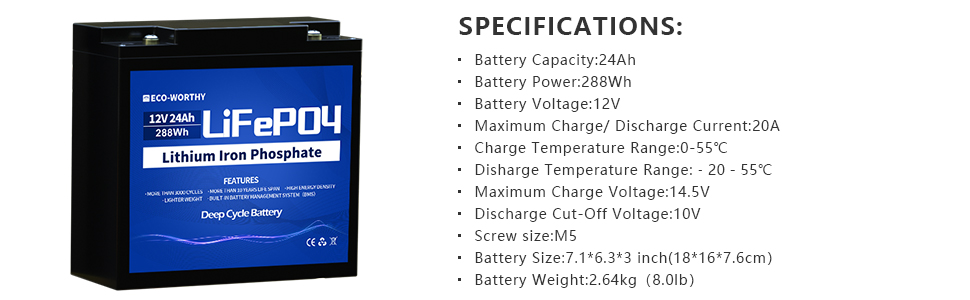

| 12V Battery Specifications |
| 24V/48V Battery Specifications |
| Product Details |
| Parameters List |
|
Battery |
Continuous Current（A） |
Capacity（Ah） |
Energy （Wh） |
BMS Protections |
Weight (lbs/kg) |
Size (inch/mm) |
Terminal Type |
Case Material |
|

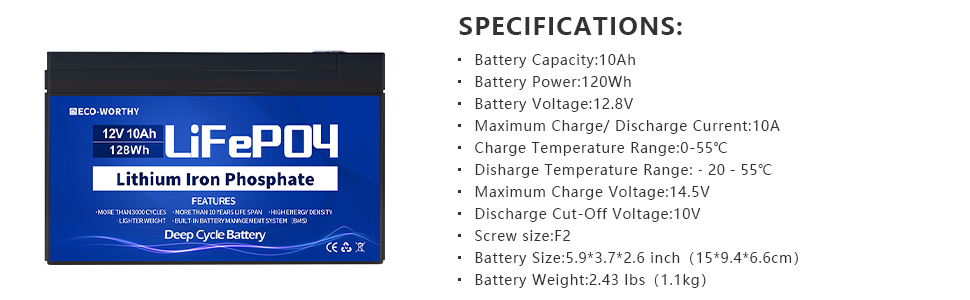

12V 10Ah |
10 | 10 | 128 |
Overcharge/Over-discharge Over-temperature |
2.43/1.1 |
5.9*3.7*2.6/150*94*66 |
F2 |
ABS |
|

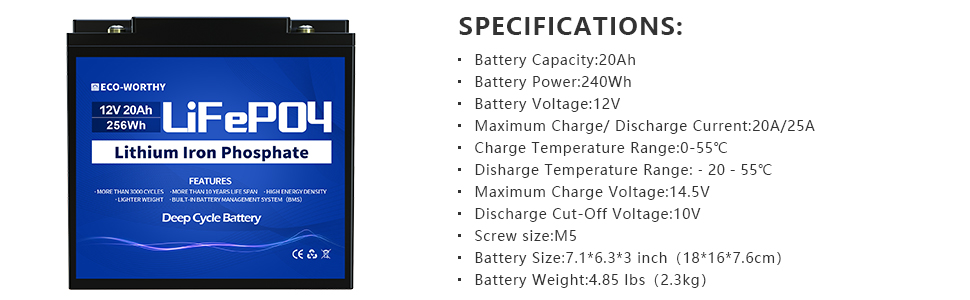

12V 20Ah |
25 | 20 | 256 |
Overcharge/Over-discharge Over-temperature |
4.85/2.3 |
7.1*6.3*3/180*160*76 |
M5 |
ABS |
|

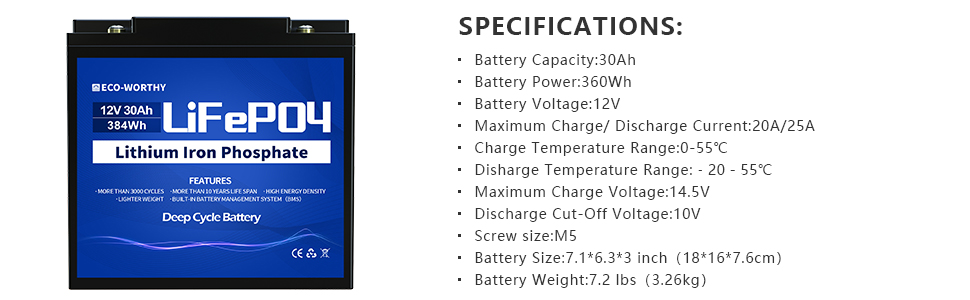

12V 30Ah |
25 | 30 | 384 |
Overcharge/Over-discharge Over-temperature |
7.2/3.26 |
7.1*6.3*3/180*160*76 |
M5 |
ABS |
|

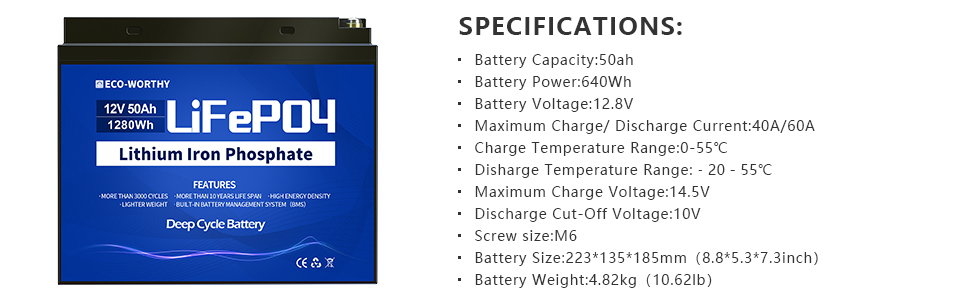

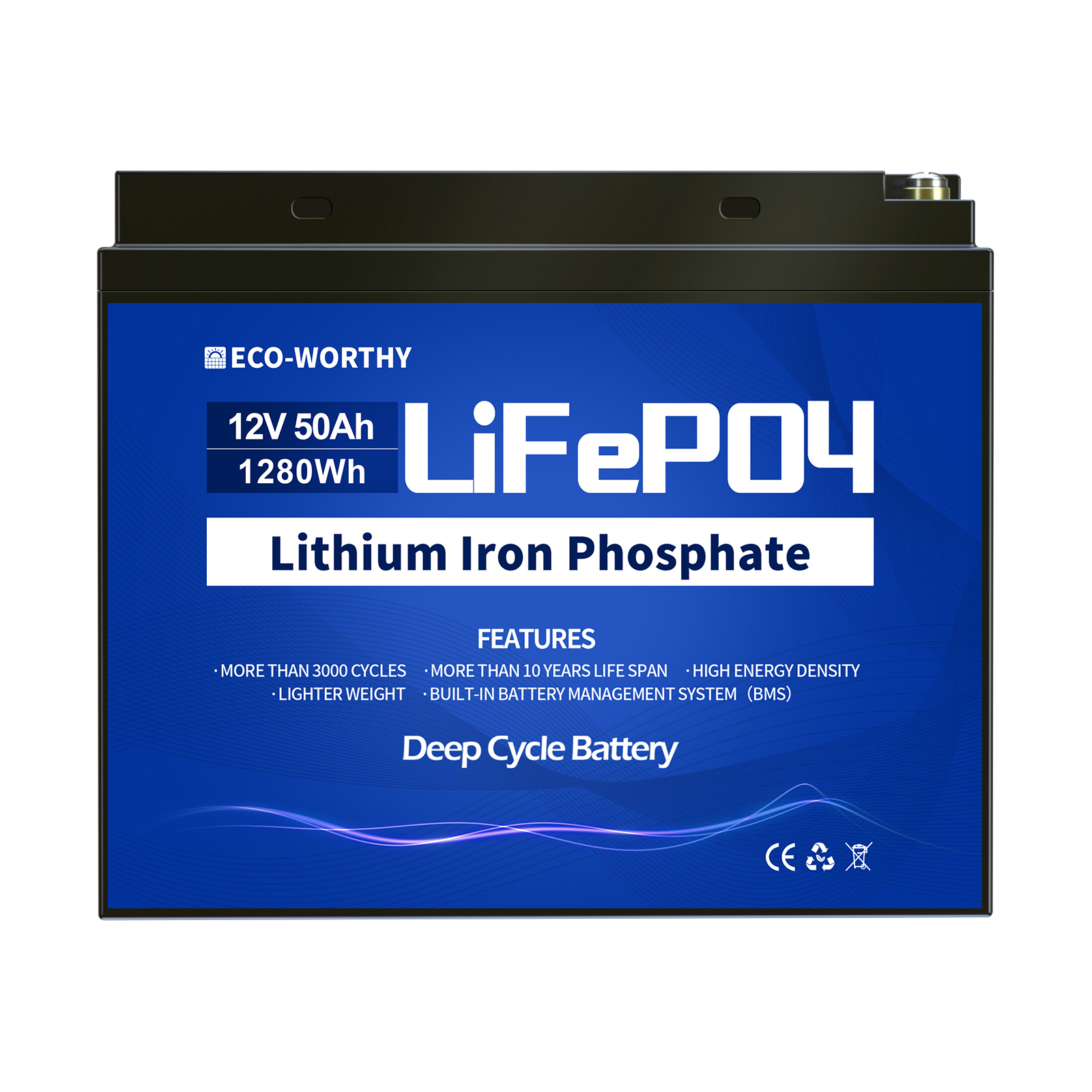

12V 50Ah |
50 | 50 | 640 |
Overcharge/Over-discharge Over-temperature |
10.8/4.9 |
8.8*5.3*7/220*135*178 |
M6 |
ABS |
|

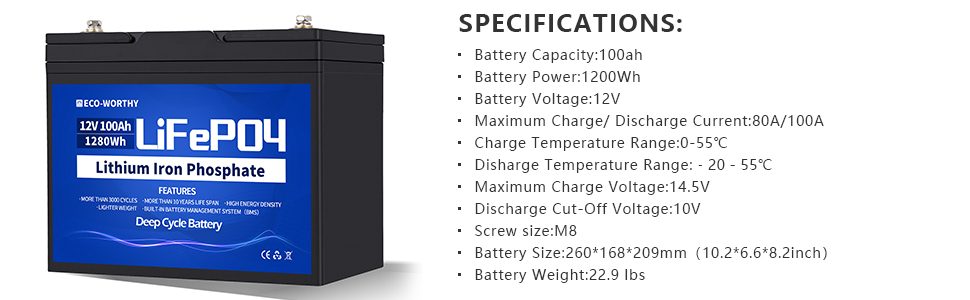

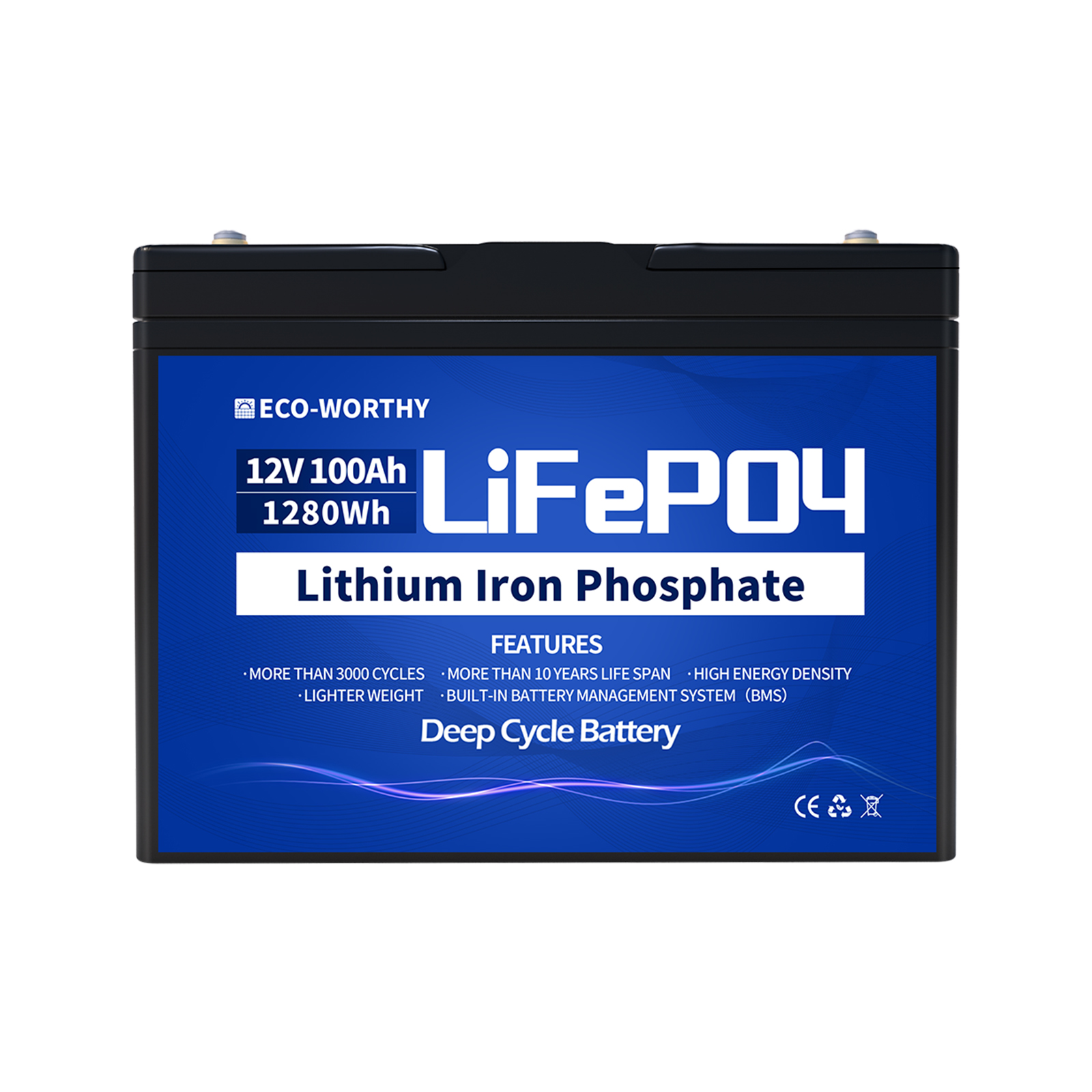

12V 100Ah |
100 | 100 | 1280 |
Overcharge/Over-discharge Over-temperature |
25.5/11.6 |
10.2*6.6*8.2/260*168*209 |
M8 |
ABS |
|

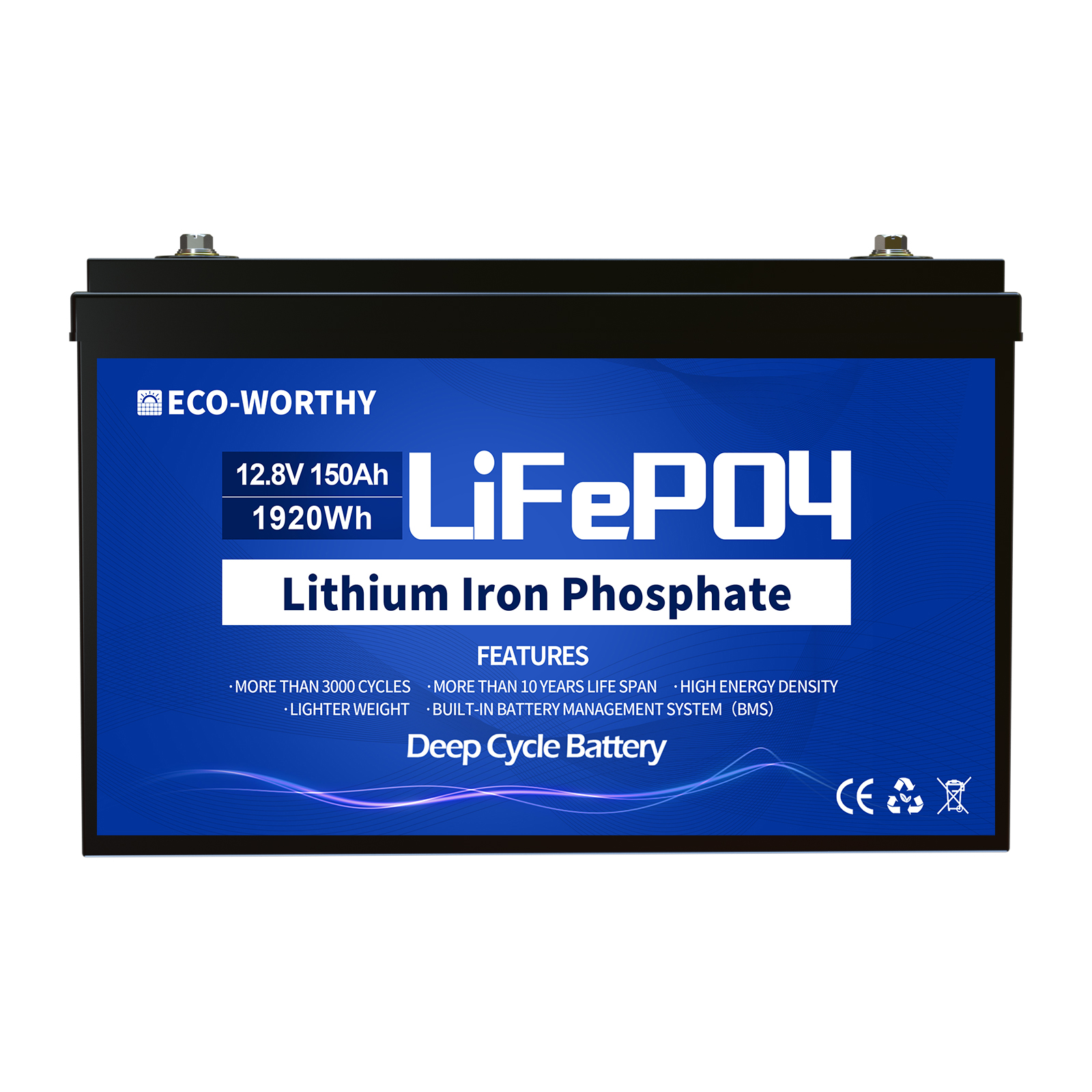

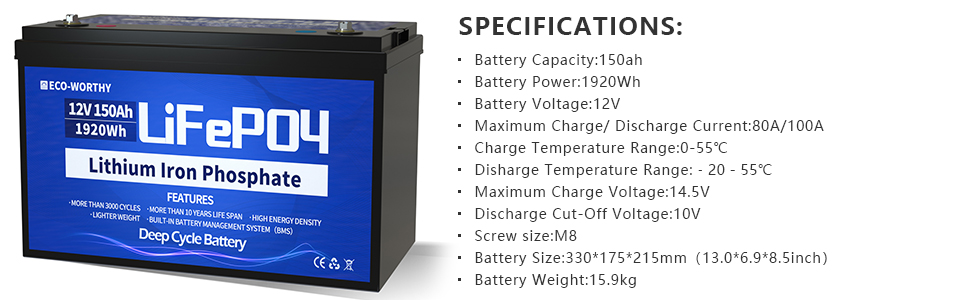

12V 150Ah |
120 | 150 | 1920 |
Overcharge/Over-discharge Over-temperature |
35/15.9 |
13.0*6.9*8.5/330*175*215 |
M8 |
ABS/ Steel |
|

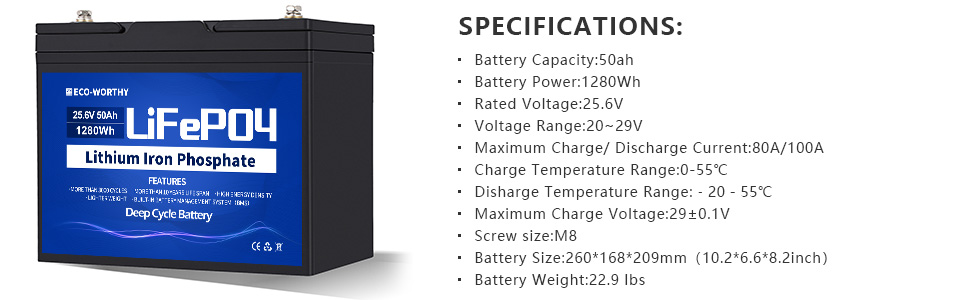

24V 50Ah |
50 | 50 | 1280 |
Overcharge/Over-discharge Over-temperature |
25.5/11.6 |
10.2*6.6*8.2/260*168*209 |
M8 |
ABS |
|

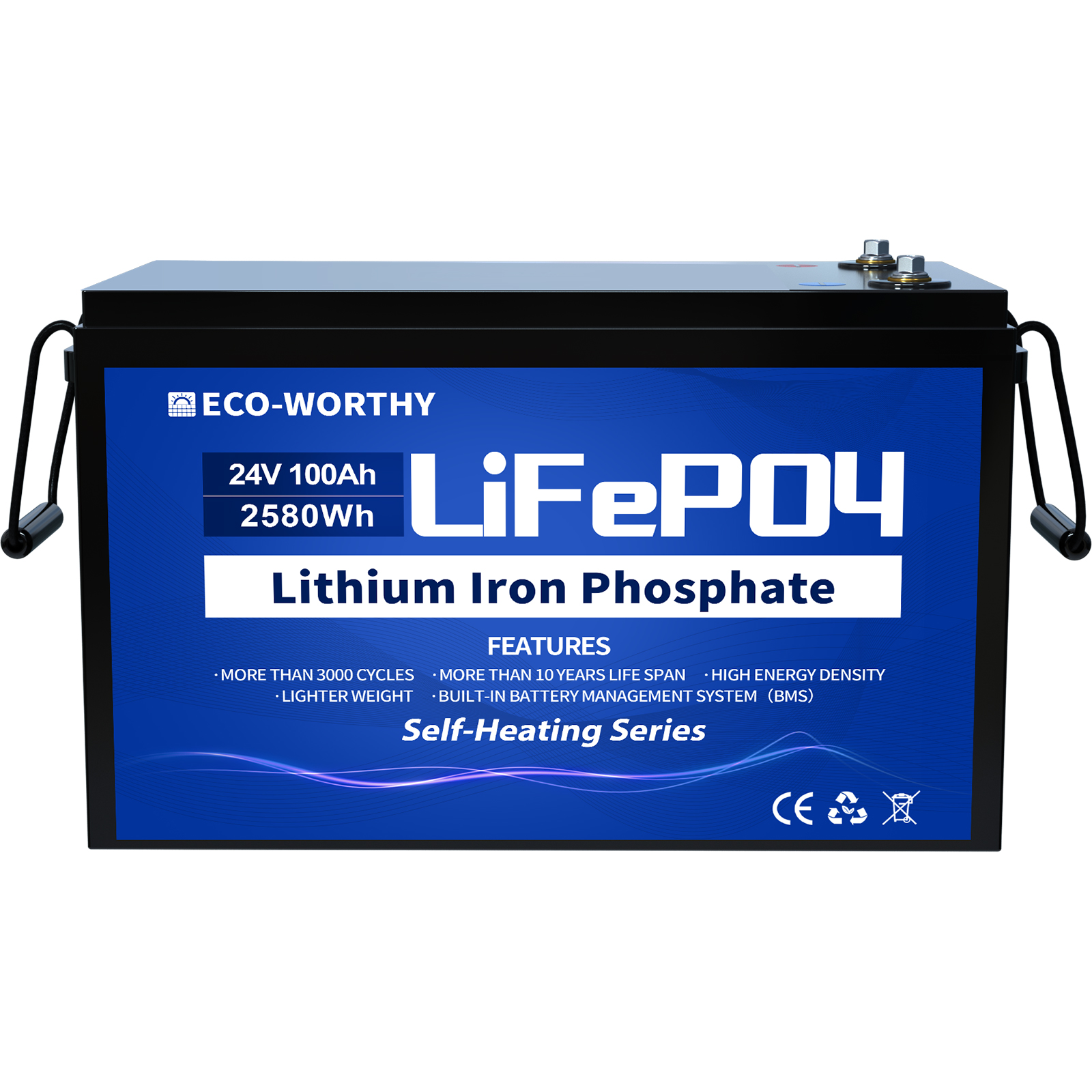

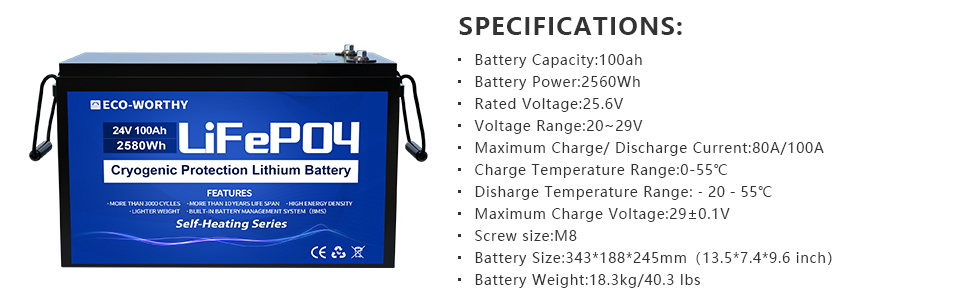

24V 100Ah |
100 | 100 | 2560 |
Overcharge/Over-discharge Over-temperature |
40.3/18.3 |
13.5*7.4*9.6/343*188*245 |
M8 |
Steel |
|

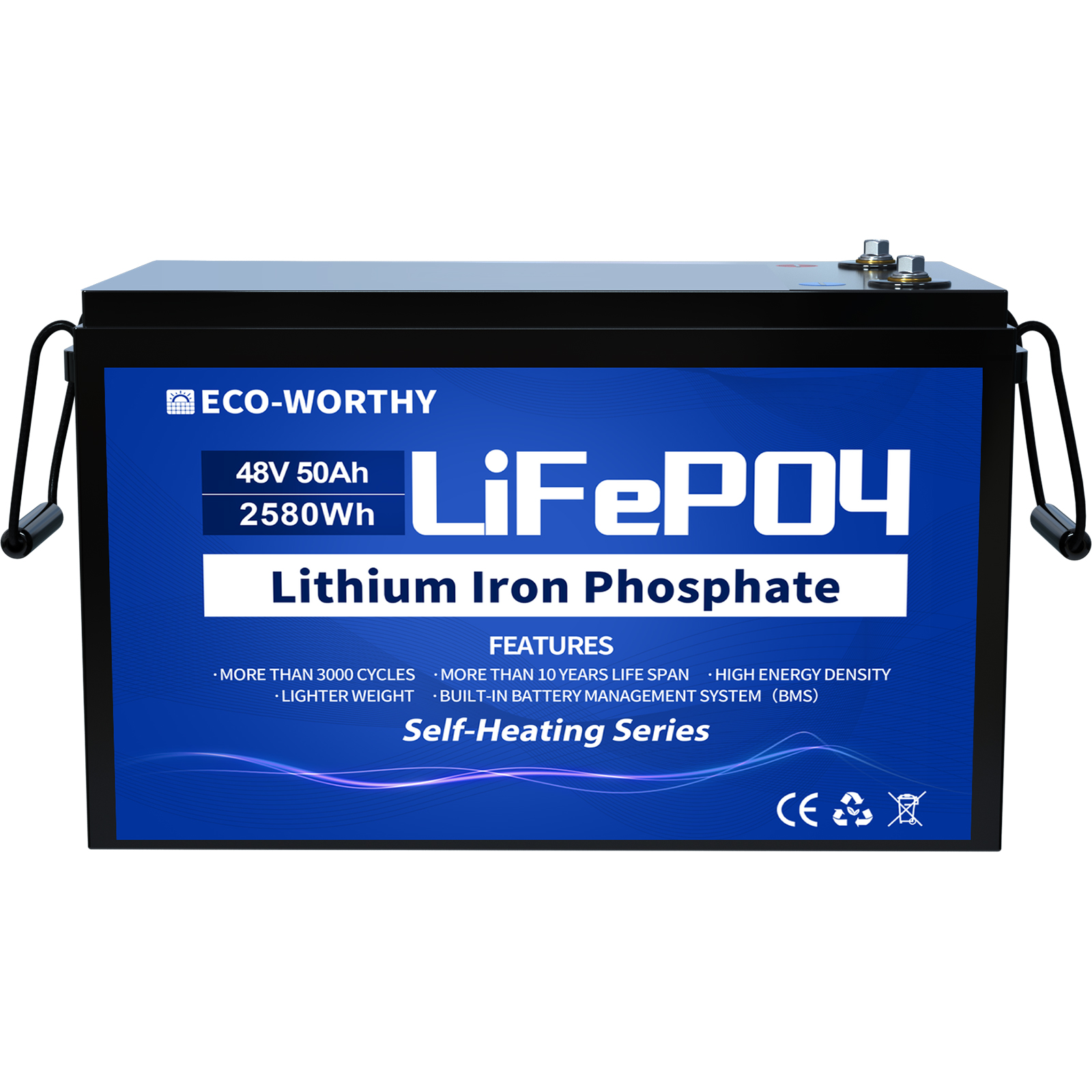

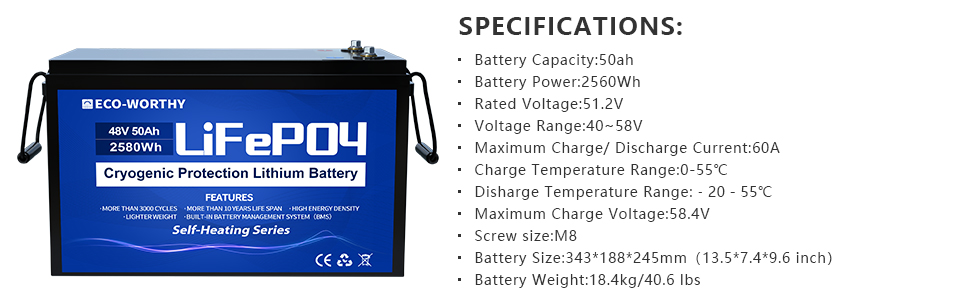

48V 50Ah |
50 | 50 | 2560 |
Overcharge/Over-discharge Over-temperature |
40.6/18.4 |
13.5*7.4*9.6/343*188*245 |
M8 |
Steel |
| Package Customize |
| Manufacturer |
USER MANUAL
