Solar Trickle Charger for 12V Batteries in Car & Boat

Plug & Play SAE Connector

Solar Panel SAE connector is plug and play, no need to recognize positive or negative, simple and easy to use.

Note: As this is 5W solar panel main function is prevent battery drain out, not for full charging your battery.

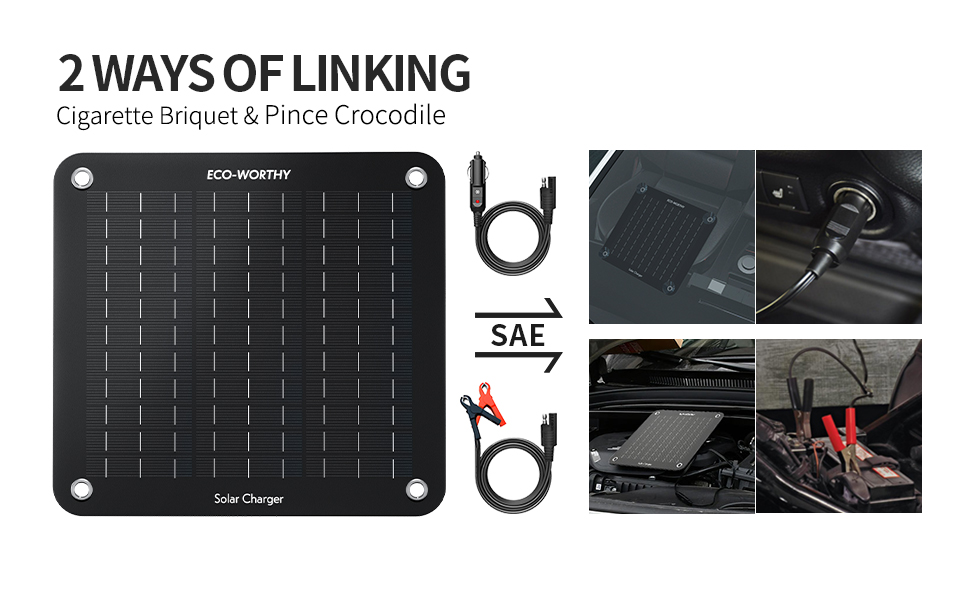

Cigarette Lighter

Plug the cigarette lighter to socket when use it to charge or maintain vehicle's battery, really plug and play.

Note: For some makes or models of vehicles, the cigarette lighter port may not operate when the ignition is turned off.

In such cases, please connect the solar battery charger maintainer to the battery directly.

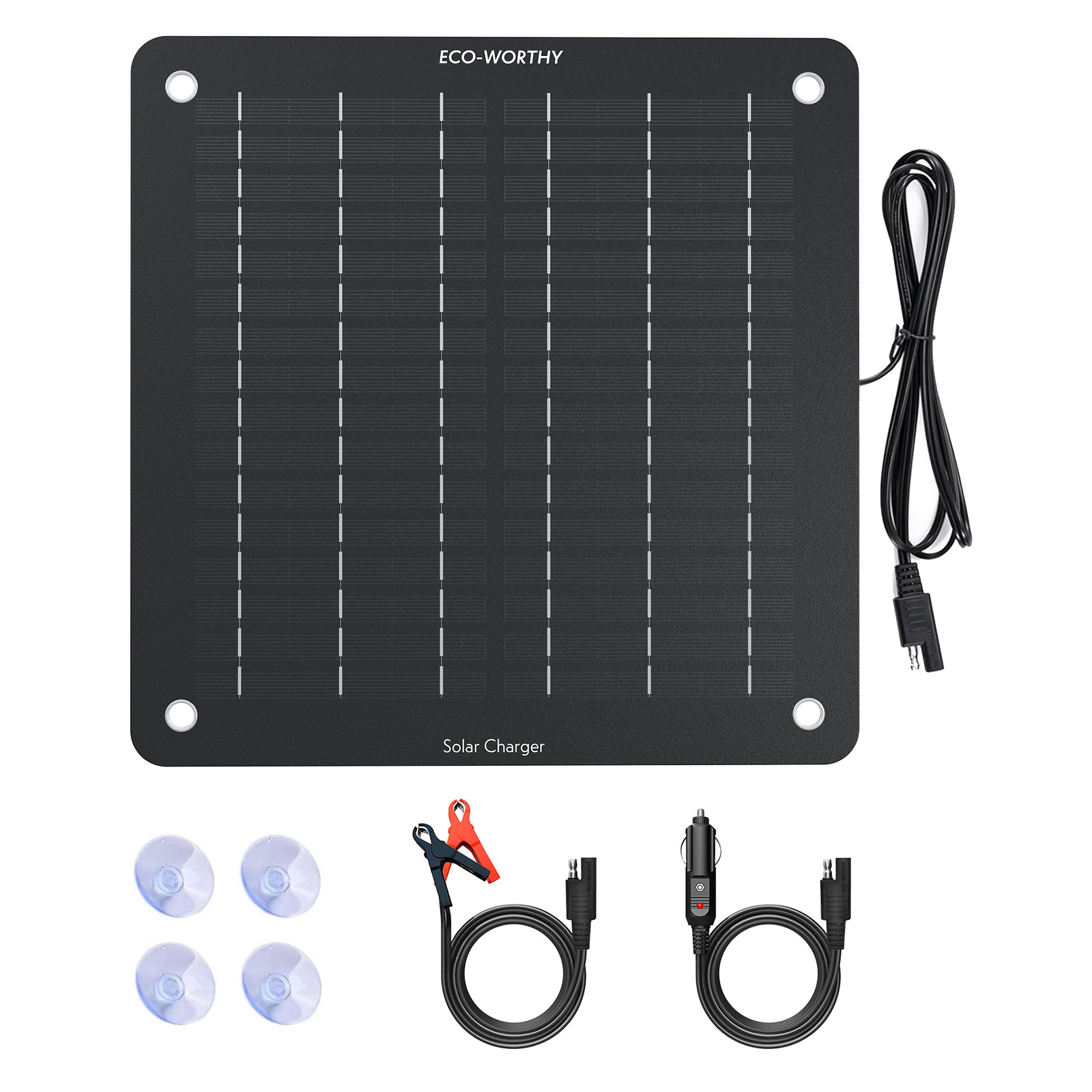

Alligator Clip Adapter

Use the red and black battery clamps to trickle charge and maintain 12V battery, make sure they connect correctly.

Built-in Blocking Diode

Built-in blocking diode to prevent reverse discharge.

This solar power panel on your windshield with the suction cups or fix it on the sun visor with the back strips.

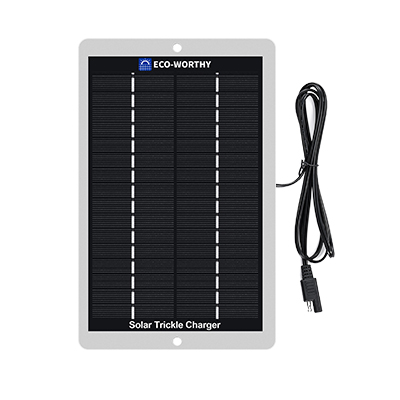

	Max Power(Pmax): 2.5W Open-circuit Voltage: 19.2V Short-circuit Current: 0.17A Max Working Voltage: 16V Max Working Current: 0.15A Size: 7.7"*4.9"(19.6*12.5cm)

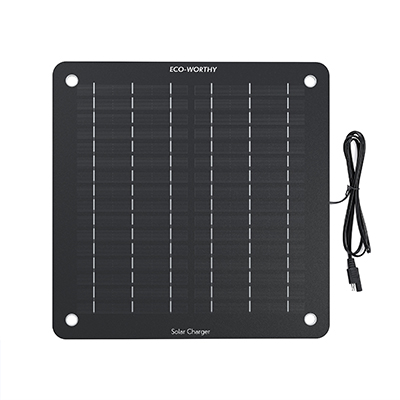

Max Power(Pmax): 5W Open-circuit Voltage: 22.41V Short-circuit Current: 0.3A Max Working Voltage: 17.9V Max Working Current: 0.28A Size: 7.9"*7.9"(20*20cm)

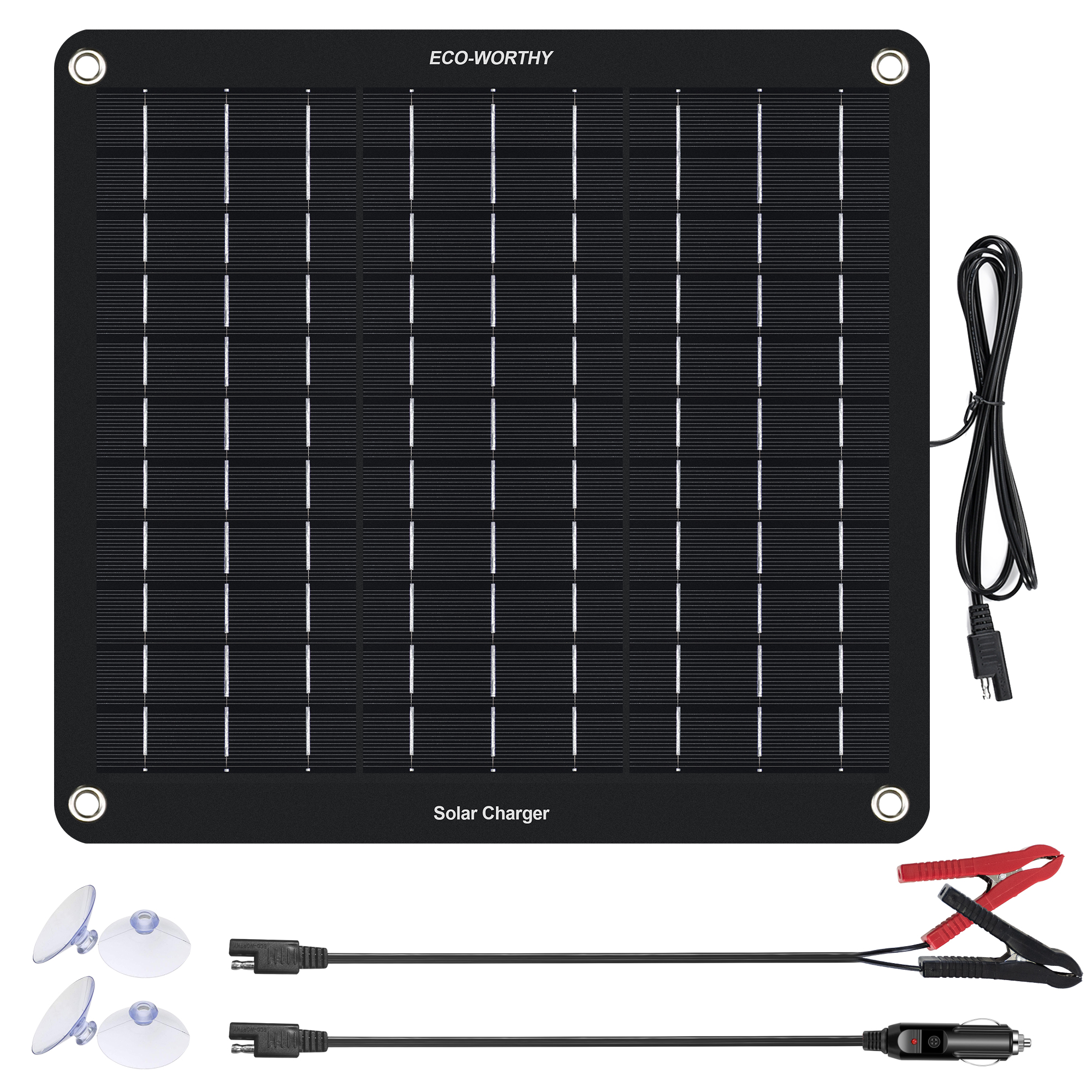

	Rated Power: 10W Voc: 22.41V Vop: 17.9V Short circuit current (Isc): 0.61A Working current (Iop): 0.56A Output Tolerance: ±3% Temperature range: -40℃ ~ +80℃

•
