Daily Power of 40KWH The power of 40.56KWh per day under 4 hours full sunshine, very suitable for home, villa, shed, cabin, workshop, farm or other off-grid occasion, and it will provide enough power for TV, air/window condition, water heater, refrigerator, coffee maker, microwave, Electric drill and other AC 110V devices. (Note: As there are many parts in the system, please contact customer service to determine the appropriate distribution method)
Super-High Capacity & 10+ Years' life Batteries With 12V 280Ah lithium batteries, which have higher charging/discharging efficiency and more than 6000 times deep cycles than lead acid batteries. Built-in BMS chips(battery management system), can also prevent the battery from getting damaged and provide multi-protections.Metal Shell,defense of all potential risk.Much Safer,prevent Fire, Spike,Explosion, Crash.
Reliable UPS Function Composed of 5000W 48V DC-110V AC pure sine wave inverter and 80A MPPT controller. Not only can it be used off-grid, but when there is no sunlight, it can also receive electricity from the grid to charge the battery to meet all-weather use, which will protect appliance life with no electromagnetic pollution and has 99.9% high efficiency power.You can remotely monitor the running status of the system through APP.
Multifunctional split phase hybrid inverter 5000W 48V DC-110V AC All-in-one inverter built in 80A MPPT controller. Supports carrier without battery and grid connection. It can directly convert photovoltaic energy into direct current for DC load when there is no battery or battery is full. Supports free setting of charge and discharge time, avoid the peak of electricity consumption. Supports a maximum of 6 devices in parallel. Configure WiFi module to dynamically monitor the screen.
The 410W solar panels are so large that they can only be shipped on pallets. They also need to be returned on pallets.Due to the high return cost, the buyer needs to bear the return cost themselves unless there is a quality issue with the product. Please purchase with caution!

If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 10000W 48V expandable MPPT Solar Kit is an ideal choice.

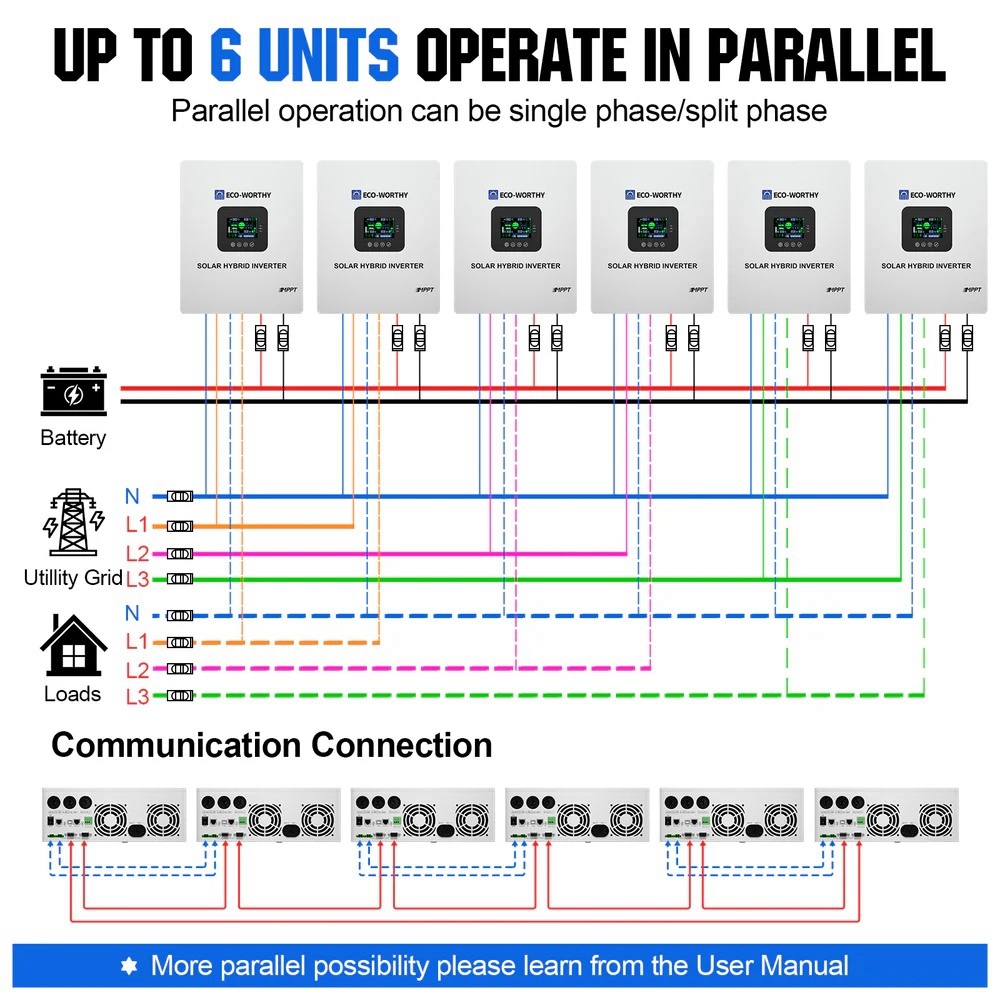

5000W 48V Solar Hybrid Inverter Charger supports up to 6 units (30kw Max.) in parallel. It's capable of single-phase or split-phase parallel. that means, it can output 110V and 220V at the same time.

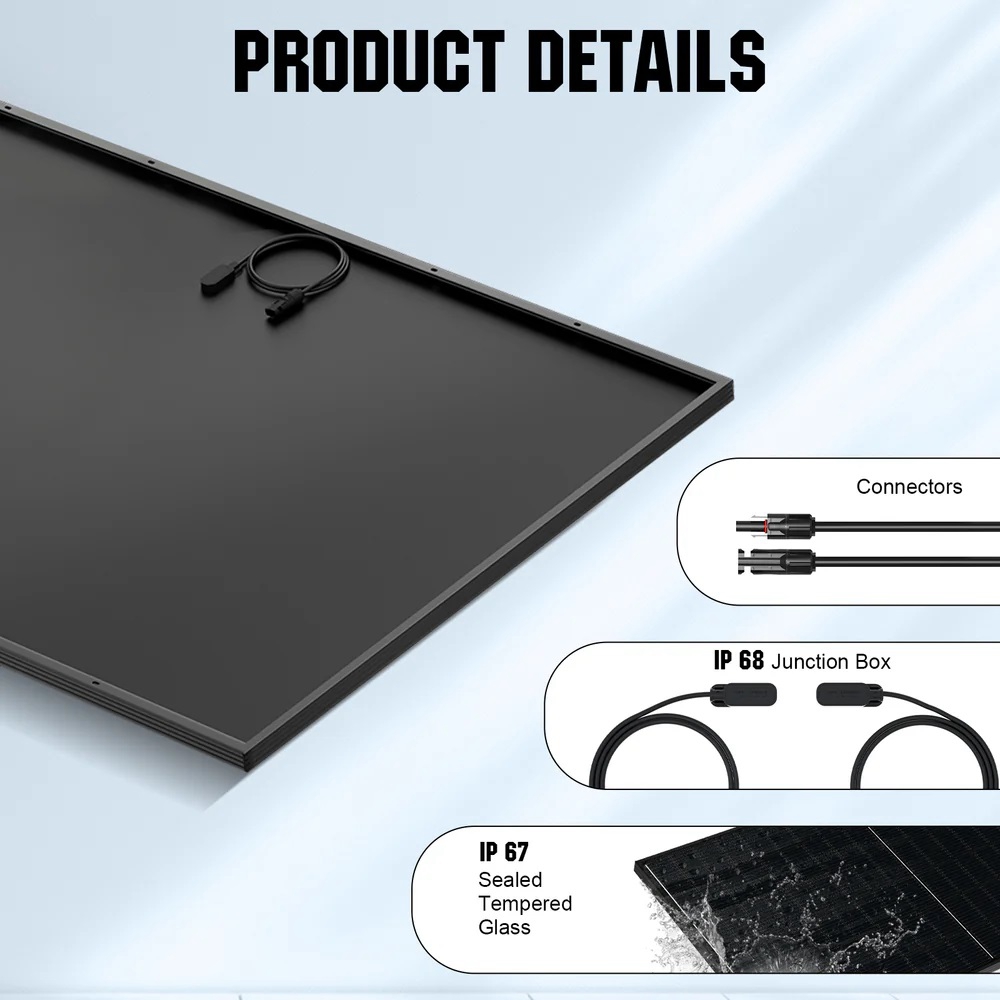

[410W Mono Solar Panel]The solar cells with 21% conversion efficiency and 10BB bus bar are selected, will not waste any energy. Anti PID process and coated tempered glass bring longer lifespan. The solar panels will be shipped on a pallet.

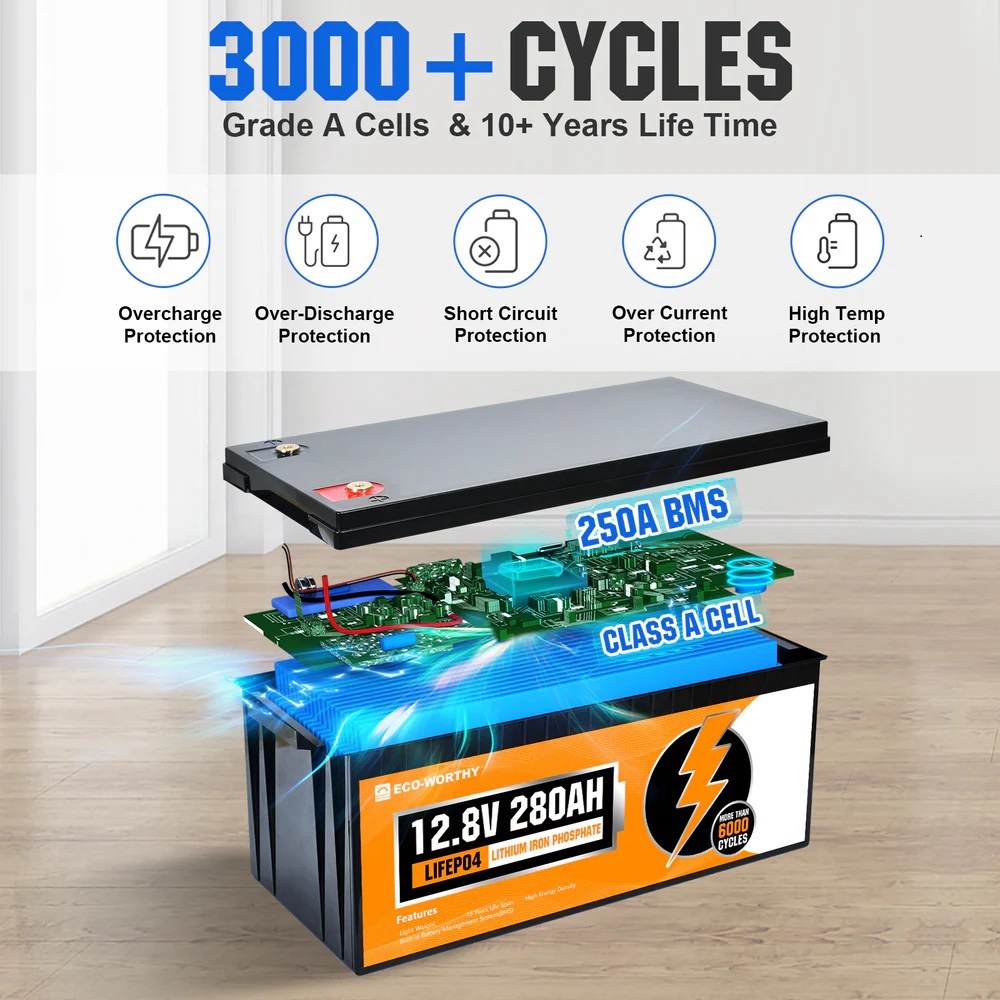

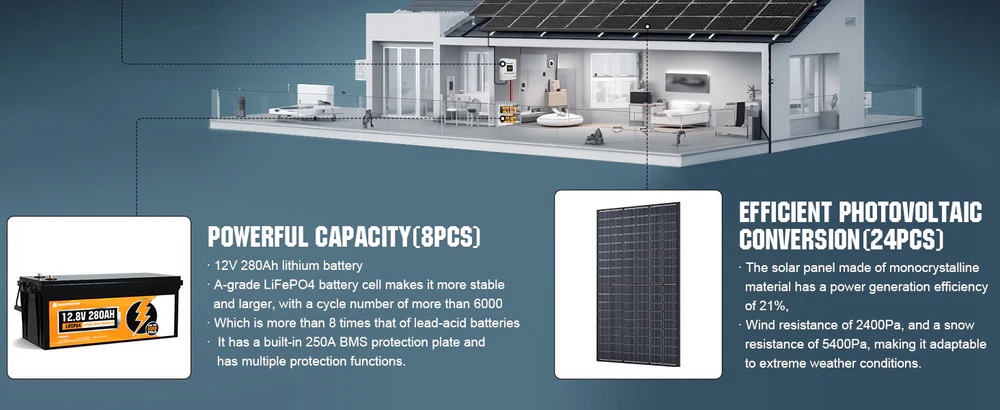

ECO-WORTHY 12V 280Ah LiFePO4 Lithium Iron Phosphate Battery contains 6000+ deep cycles, each lithium battery can run for more than 15 years, which is 3 times longer cycles than other LiFePO4 batteries on the market.

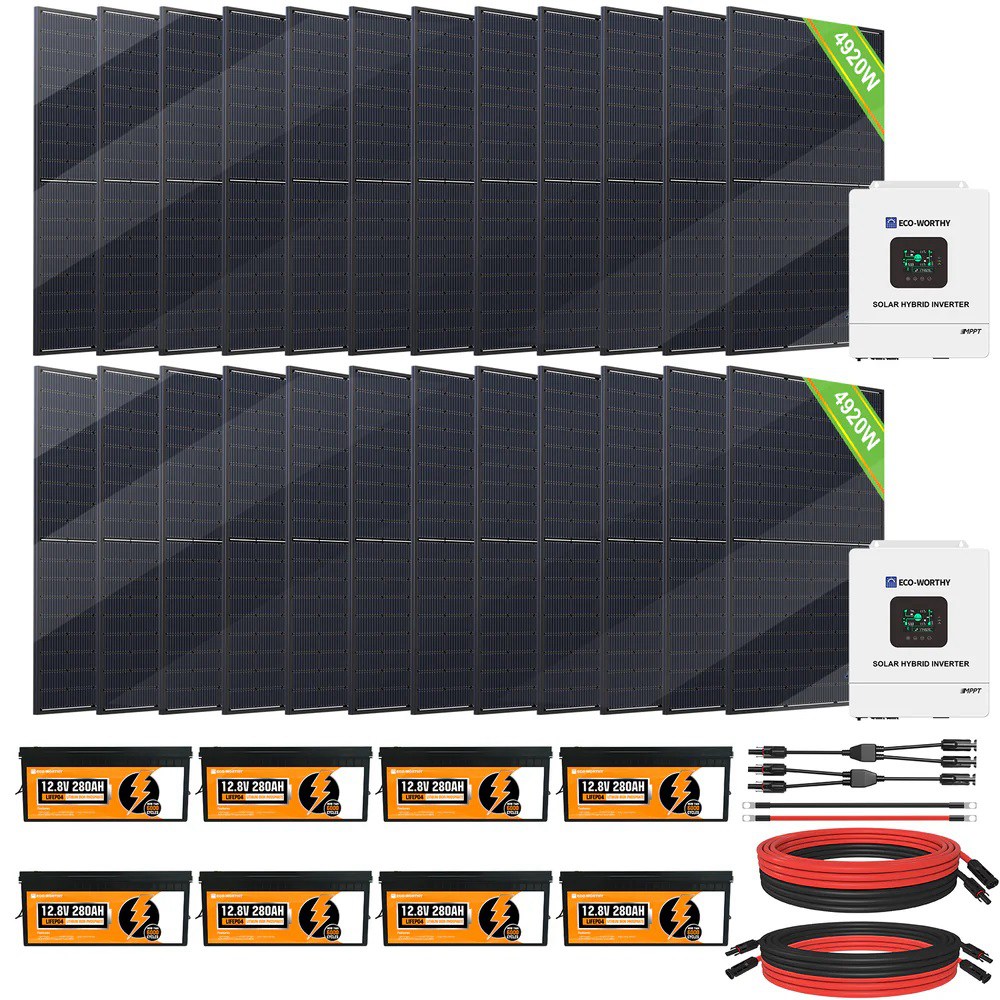

Package Includes
28.67kWh Lithium Battery Bank

24x 410W Mono Solar Panel
2x 5000W 48V Solar Hybrid Inverter Charger
2x 5M 8AWG Extension Cable with MC4
4x 5M 12AWG Solar Cable with MC4
2x Y MC4 Connector
52x Z Mounting Bracket
8x 280Ah 12V Stackable LiFePO4 Lithium Battery
5x 2AWG Battery Interconnect Cable
43kWh Lithium Battery Bank
24x 410W Mono Solar Panel
1x 5000W 48V Solar Hybrid Inverter Charger
2x 5M 8AWG Extension Cable with MC4
4x 5M 12AWG Solar Cable with MC4
2x Y MC4 Connector
52x Z Mounting Bracket
12x 280Ah 12V Stackable LiFePO4 Lithium Battery
8x 2AWG Battery Interconnect Cable

410W Monocrystalline Solar Panel

Rated Power: 410W Solar Cell: Mono PERC
Maximum/Peak Voltage(Vmp): 31.30V Open Circuit Voltage(Voc): 37.50V
Short circuit current: 13.84A Maximum current: 13.10A
Output Tolerance: ±3% Temperate coefficient of Isc: 0.05%/℃
Temperate coefficient of Voc: -0.29%/℃ Temperature range: -40℃~ +85℃
Frame: Aluminum alloy frame Weight: 20.5 kg
Size: 1724x1134x30 mm(With Frame)

5000W 48V Solar Hybrid Inverter Charger

AC Input Mode
Rated Input Voltage: 110/120VAC Input Voltage Range: 90V-140VAC
Frequency: 50Hz/60Hz(auto detect) Overload/Short Circuit Protection: Circuit breaker
Efficiency: >95% AC Reverse Protection: Available
Max Bypass Overload Current: 40A
Invert Mode
Output Voltage Waveform: Pure Sine Wave Rated Output Power: 5000W
Rated Output Voltage: 120VAC Peak Power: 10000W
Bypass Breaker: 63A Rated Battery Input Voltage: 48V
Min Starting Voltage: 44V Power Saving Mode: Load ≤25W
AC Charging Mode
Battery Type: Lead acid or lithium battery Max Charge Current: 60A
Charge Voltage Range: 40-60VDC Overcharge Protection: Alarm and turn off charging after 1 minute
PV Charging Mode
Max Input Power: 5000W PV Charging Current Range:0-80A(can be set)
Max PV Open Circuit Voltage: 500VDC PV Operating Voltage Range: 60-145VDC
MPPT Voltage Range: 120-450VDC Battery Voltage Range: 40-60VDC
Max Output Power: 5000W Charging Short Circuit Protection: Blown fuse

280Ah LiFePO4 Lithium Battery

Battery Capacity: 280Ah Battery Power: 3584Wh
Battery Voltage: 12.8V Maximum Charging Current: 250A
Maximum Discharging Current: 250A Max Charge Voltage: 14.5V
Discharge Cut-Off Voltage: 10V Operating Temperature: -4°F to 140°F
Cycle Life: ≥6000 at 50% DoD (depth of discharge) Size: 20.98*9.48*8.81inch
Weight: 63.93lbs

16.4 feet 12AWG Cables

Cable Type: Connecting Solar Panels to Charge Controller Rating Voltage: 600/1000V
Length: 5 meters(16 ft) Conductor: Tinned copper wire
AWG: 11 Normal Cross Sectional Area of the Conductor (mm2): 4
Waterproof: IP 65 Protection Temperature: -40°F to +185°F
Connector: MC4 Weight: 0.742KG

Z Mounting Brackets

4 pieces of Z shape solar panel brackets 8 pieces of stainless steel nuts and cap bolts

Y Branch Cable MC4 Connectors



Compatible with MC4 solar connector. Easy installation for 2 solar panels connected in parallel.
Leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products

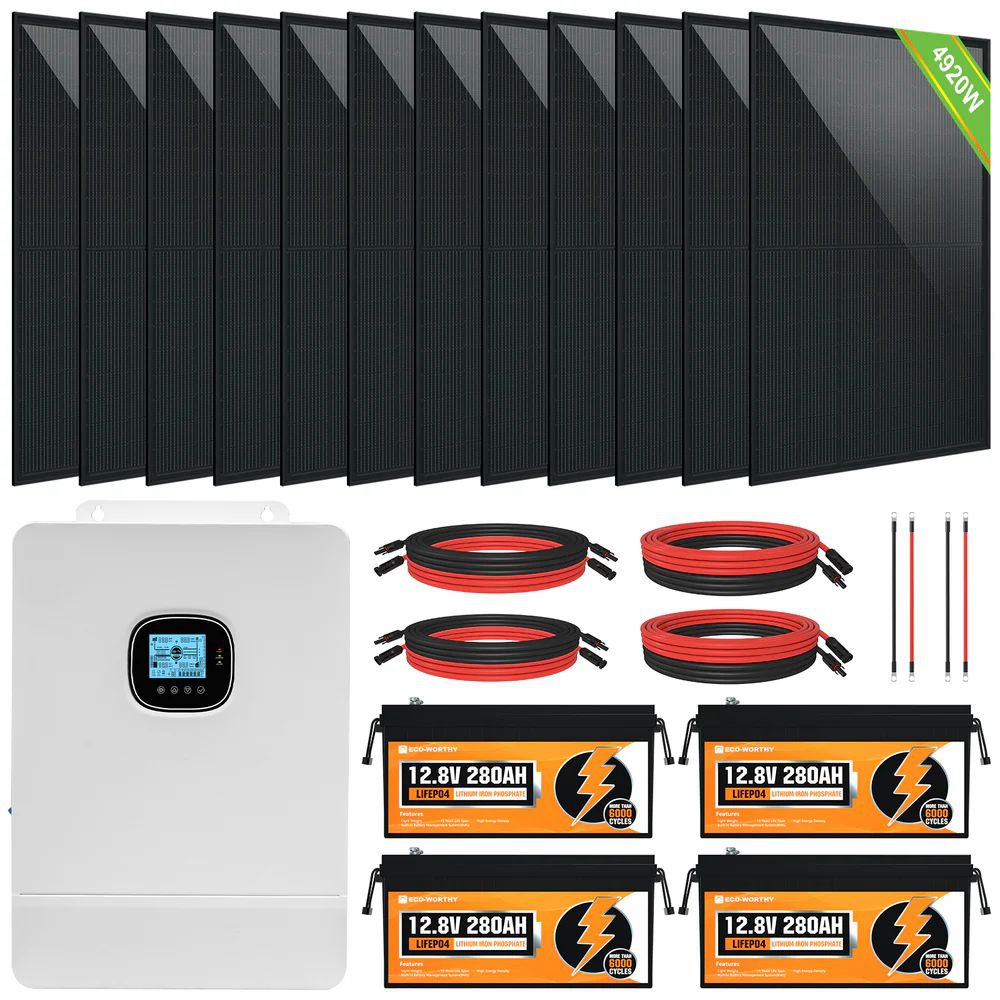

10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)
