10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)
10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)
10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)
10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)
10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)
10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)
10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)
10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)
10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)
10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)
10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)

10000W Home Off-grid Solar Power System: 10KW 120V/240V Output+ 14.3kWh Lithium Battery (4*280Ah)+ 4920W Solar Panel (12*410W)

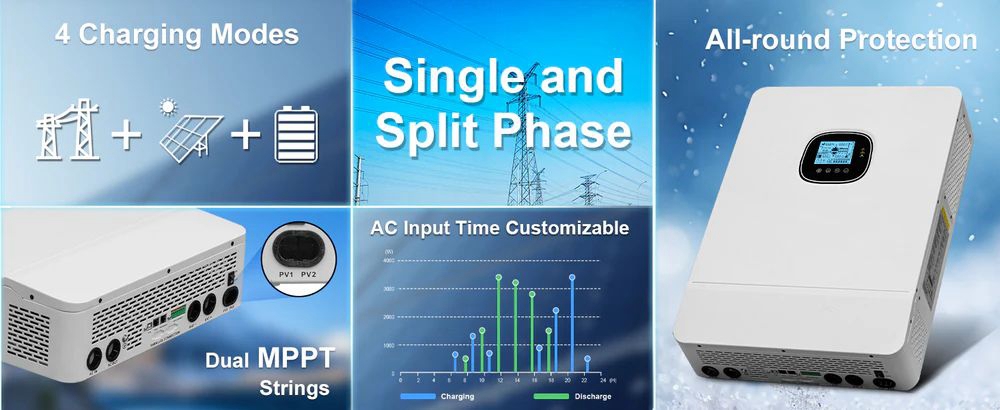

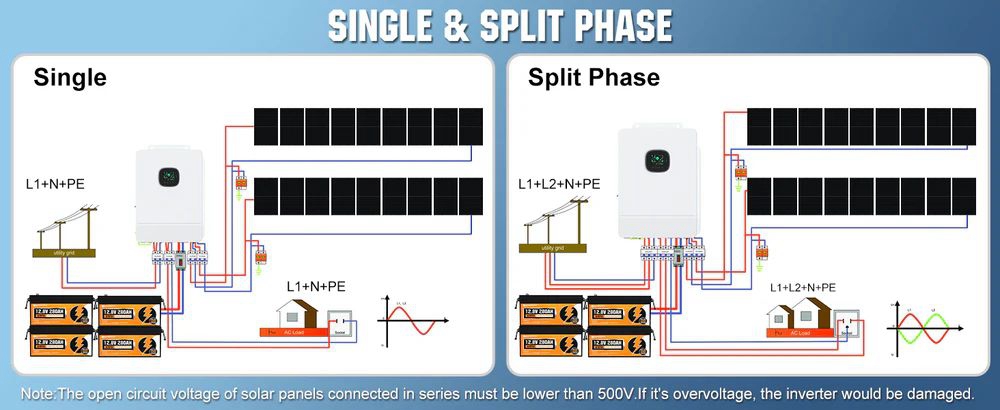

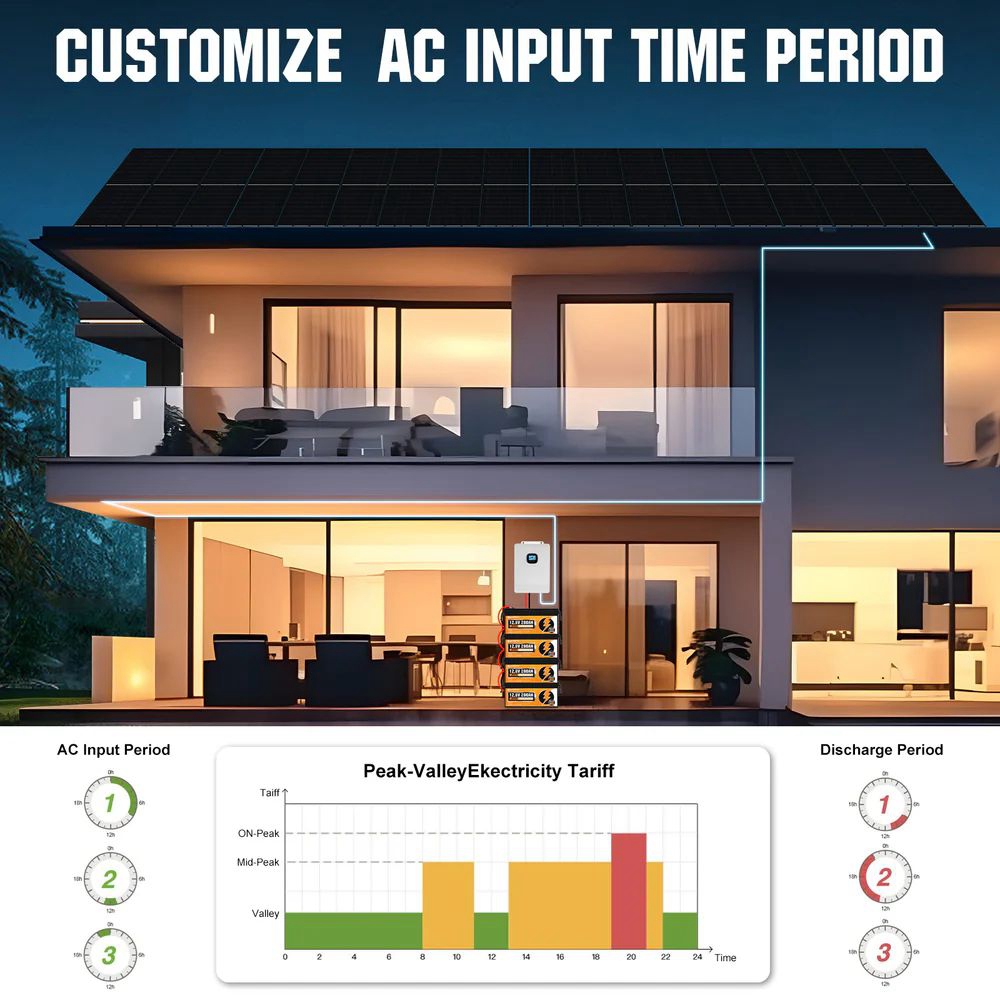

[Efficient and Powerful Solar Hybrid Inverter] Rater output 10KW and 20KW peak power,support single-phase and split-phase output in one device. Customizable AC input time to save every penny of your electricity bill.

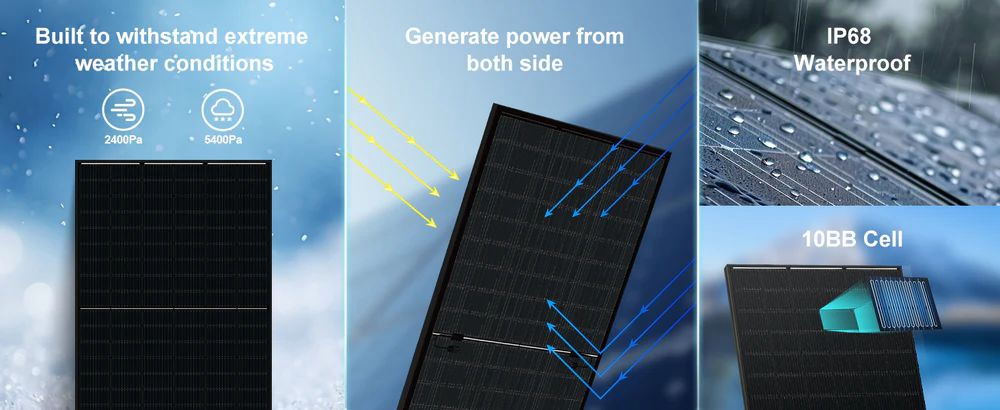

[410W Mono Solar Panel] The back of Panel provide up to 15% extra power generation. The solar cells with 21% conversion efficiency and 10BB bus bar are selected, will not waste any energy. Anti PID process and coated tempered glass bring longer lifespan.

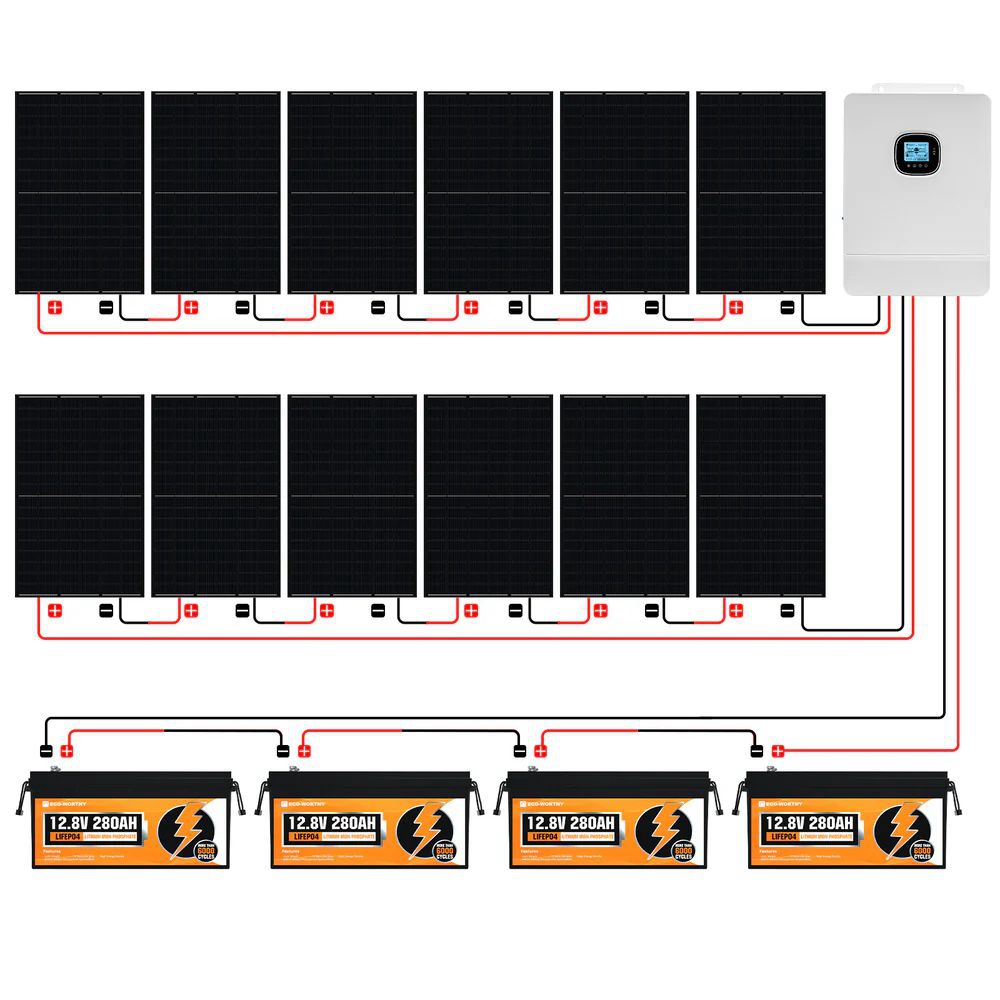

[280Ah Lithium Battery] Four batteries need to be connected in series, with a maximum storage capacity of 14.34kWh, suitable for small households.
[Expandable System] Dual strings solar input design, capable of adding up to 11000W solar panels, with 5500W per string. Adding batteries of the same model can double the storage capacity.
[Package Includes] 1*10KW Solar Hybrid Inverter + 4* 12.8V 280Ah Lithium Battery+ 12*410W mono solar panels+ other accessories needed.

[Efficient and Powerful Solar Hybrid Inverter] Rater output 10KW and 20KW peak power,support single-phase and split-phase output in one device. Customizable AC input time to save every penny of your electricity bill.
[410W Bifacial Solar Panel] The back of Panel provide up to 15% extra power generation. The solar cells with 21% conversion efficiency and 10BB bus bar are selected, will not waste any energy. Anti PID process and coated tempered glass bring longer lifespan.
[280Ah Lithium Battery] Four batteries need to be connected in series, with a maximum storage capacity of 14.34kWh, suitable for small households.
[Expandable System] Dual strings solar input design, capable of adding up to 11000W solar panels, with 5500W per string. Adding batteries of the same model can double the storage capacity.
[Package Includes] 1*10KW Solar Hybrid Inverter + 4* 12.8V 280Ah Lithium Battery+ 12*410W Bifacial solar panels+ other accessories needed.

Package Includes
14.3kWh Lithium Battery Bank

12x 410W Mono Solar Panel
1x 10kW 48V Solar Hybrid Inverter Charger
2x 5M 8AWG Extension Cable with MC4
2x 5M 12AWG Solar Cable with MC4
2x 6M 12AWG Solar Cable with MC4
4x 280Ah 12V LiFePO4 Lithium Battery

28.67kWh Lithium Battery Bank
12x 410W Mono Solar Panel
1x 10kW 48V Solar Hybrid Inverter Charger
2x 5M 8AWG Extension Cable with MC4
2x 5M 12AWG Solar Cable with MC4
2x 6M 12AWG Solar Cable with MC4
8x 280Ah 12V LiFePO4 Lithium Battery

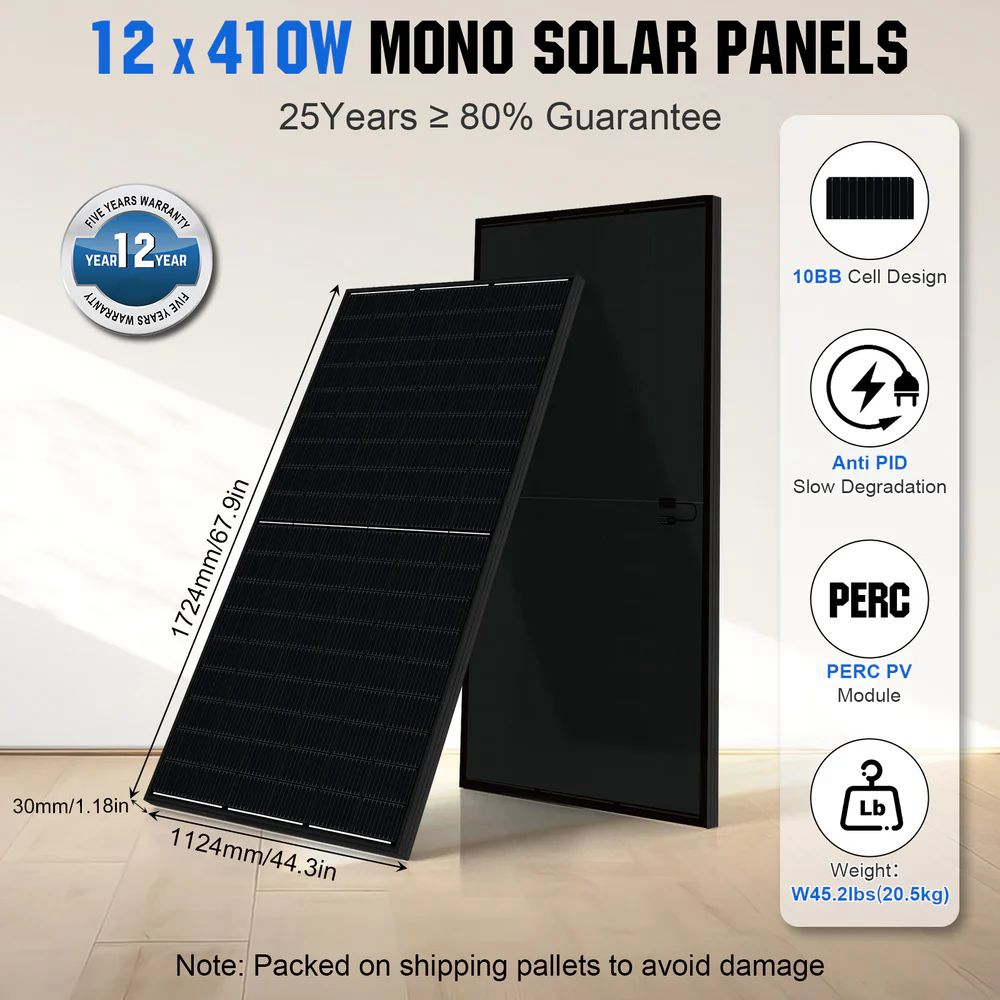

410W Monocrystalline Solar Panel

Rated Power: 410W Solar Cell: Mono PERC
Maximum/Peak Voltage(Vmp): 31.30V Open Circuit Voltage(Voc): 37.50V
Short circuit current: 13.84A Maximum current: 13.10A
Output Tolerance: ±3% Temperate coefficient of Isc: 0.05%/℃
Temperate coefficient of Voc: -0.29%/℃ Temperature range: -40℃~ +85℃
Frame: Aluminum alloy frame Weight: 20.5 kg
Size: 1724x1134x30 mm(With Frame)

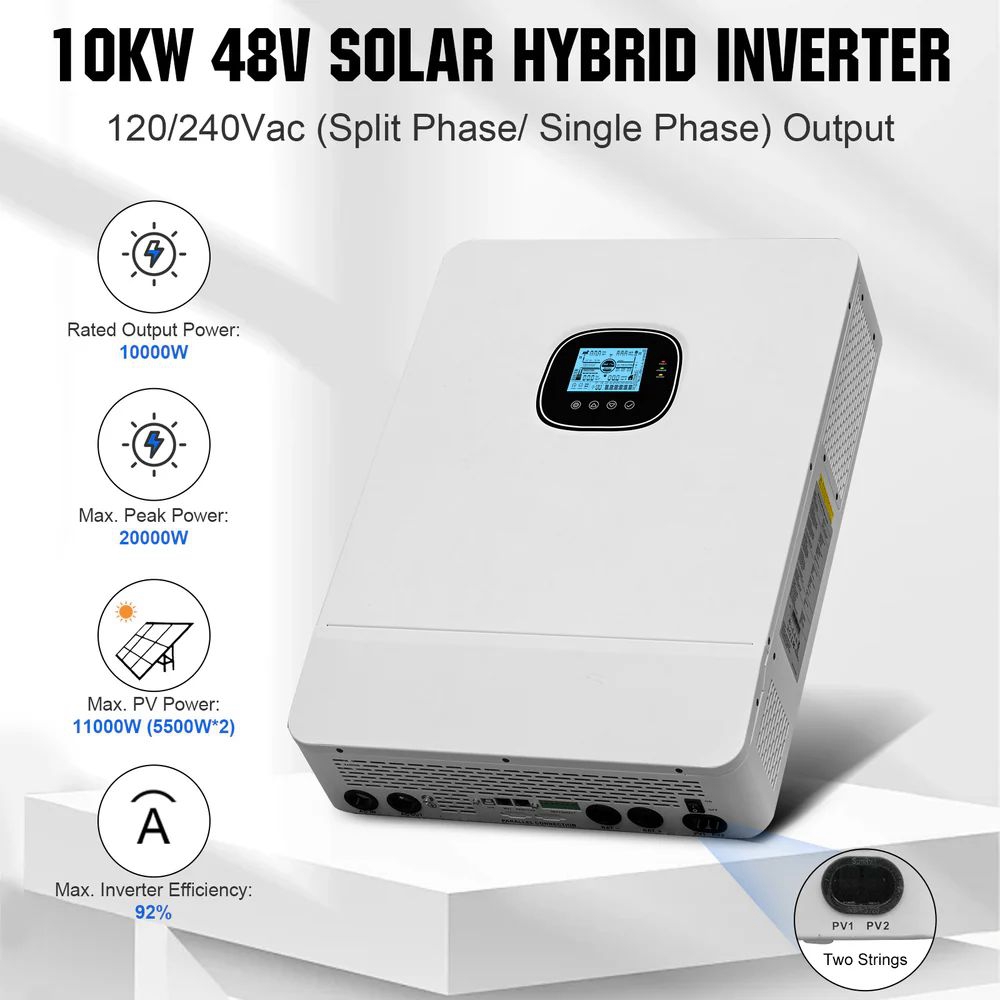

10kW 48V All-in-one Inverter with 200A MPPT

Solar Charging Mode
PV Charging Current Range: 0-200A MPPT Voltage Range: 125-425VDC
Max Input Power: 11000W Battery Voltage Range: 40-60VDC
Invert Mode
Output Waveform: Pure Sine Wave Rated Output Power: 10000W
Rated Output: 120VAC/240VAC 50Hz/60Hz Rated Battery Input Voltage: 48V
Peak Power: 20000W
AC/Grid Charging Mode
Rated Input: 90VAC-140VAC 50Hz/60Hz(auto detect)

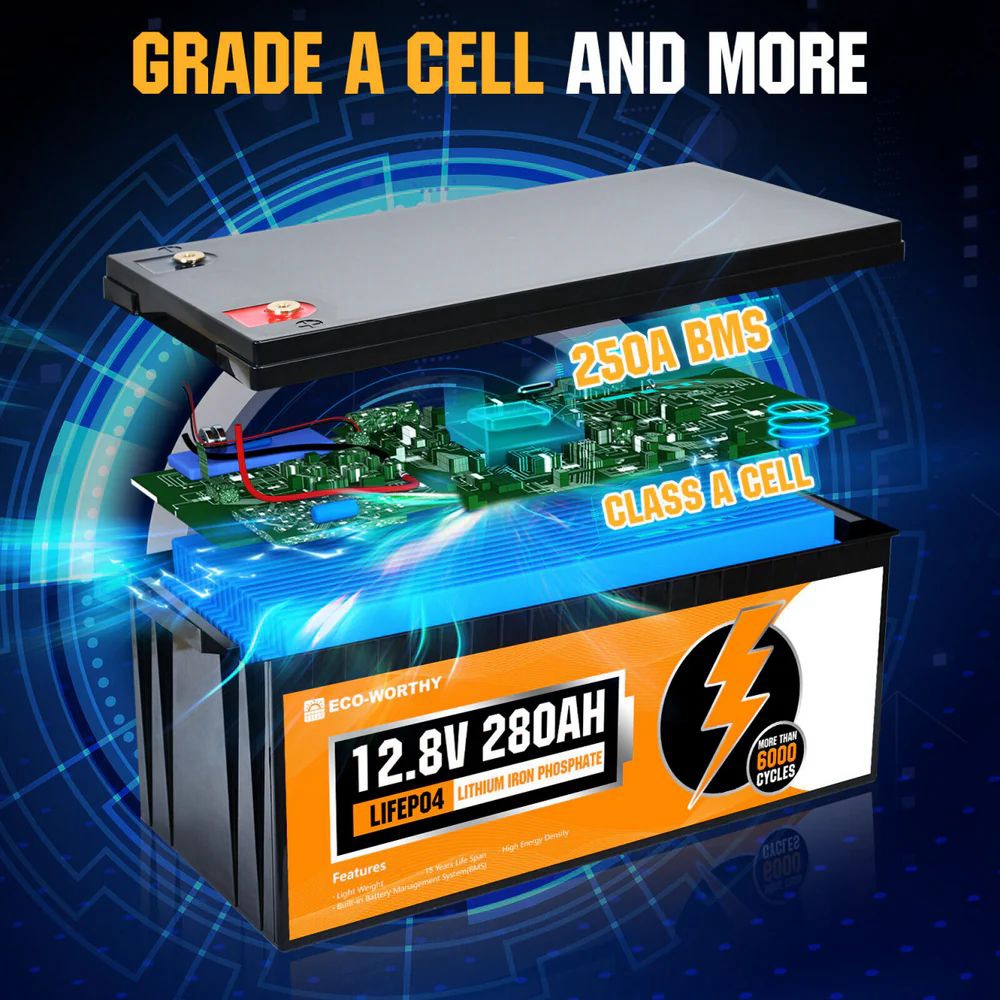

280Ah LiFePO4 Lithium Battery

Battery Capacity: 280Ah Battery Power: 3584Wh
Battery Voltage: 12.8V Maximum Charging Current: 160A
Maximum Discharging Current: 200A Max Charge Voltage: 14.5V
Discharge Cut-Off Voltage: 10V Operating Temperature: -4°F to 140°F
Cycle Life: ≥6000 at 50% DoD (depth of discharge) Size: 20.98*9.48*8.81inch

Weight: 63.93lbs
